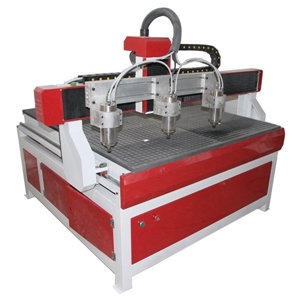

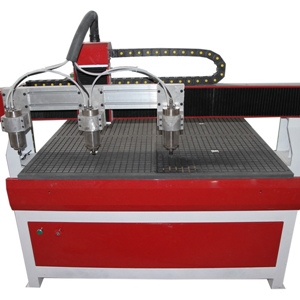

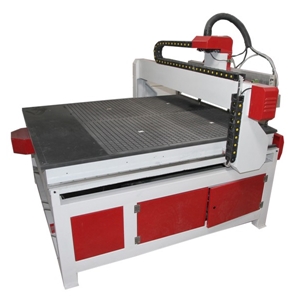

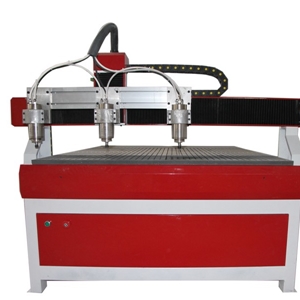

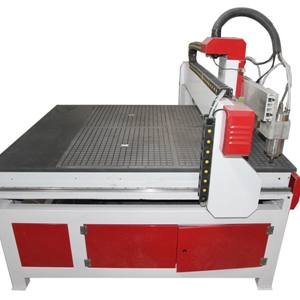

RC1212 single-head/Multi-head CNC router

RC1212 single-head/Multi-head CNC router

    Add:2020-8-28 11:40:30

    Abstract:RC1212 is King Rabbit production for large-scale batch engraving ,this model can add the second spindle which greatly improved the working efficiency . Easy to operate ,widely use in handicrafts processing and advertising industrySingle-head CNC router ca

RC1212 is King Rabbit production for large-scale batch engraving ,this model can add the second spindle which greatly improved the working efficiency . Easy to operate ,widely use in handicrafts processing and advertising industry

Single-head CNC router cannot solve it !

Multi-head CNC router is a good choice.Multi-head CNC router will help you make quick work of furniture, wood, windows, doors and instruments with high efficiency. We offer you multi-head CNC router with high precision ball screw to increase positional accuracy.

Meanwhile, we can provide OEM service based on the size and material to be cut. We will send a matched router  to your factory or workshop.

Machine features :
1)adding rotary device(100mm diameter) can do 3d cylinder engraving .
2)1.5KW water-cooling spindle
3)X,Y,Z axis adopted Germany ballscew driving

4)Stable dsp control system

Machine model RC1212 RC1218 RC1325A
Working area 1200*1200*120mm 1200*1800*150mm 1300*2500*150mm
Overall dimensions 1630*1730*1365mm 2200*1700*1450mm 2995*1800*1590mm
Driving mode Stepper motor ,stepper driver
Transmission Ball screw driving
Control system DSP controller
Spindle power 1.5KW
Lathe bed Cast iron
Guide way Linear round guide rail (Linear square guide rail)
Blade diameter 3.175mm,6mm
Application range Non -metal materials engraving and cutting ,such as wood board ,
PVC,acrylic,plywood ,furniture making ,advertising production .
Application range : can engraving and cutting plywood ,acrylic ,wood board ,plastic aluminium ,copper ,stainless etc materials.
