Contour Cuttinh KIII Type Cutting Plotter

Contour Cuttinh KIII Type Cutting Plotter

    Add:2020-8-23 12:16:01

    Abstract:Features:1. Support the forward and reverse paper feeding, emergency stop, random location of original spot , with maximum speed of 800mm/s.2.the circuit adopts the low power consumable design, no need of cooling fan, to ensure the reliable long-time oper

Features:

1. Support the forward and reverse paper feeding, emergency stop, random location of original spot , with maximum speed of 800mm/s.

2.the circuit adopts the low power consumable design, no need of cooling fan, to ensure the reliable long-time operation.

3. Perfect output, absolutely no sawtooth in high speed.

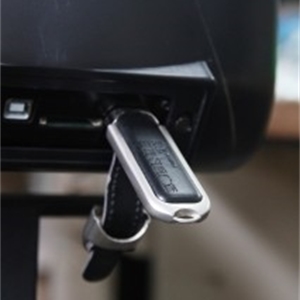

4. Serial port+USB port+U-disk+SD card, four way of output mode, offering more choices

5. Using the switching power supply, the work will be kept from the voltage fluctuation.

6. Memory function for blade speed and blade pressure, double sensor board reset, free of dolly cash

7. Using the most advanced divided chimeric dolly, and the most advanced control chip, no noisein cutting.

8. Straightly pulling the dolly, knife pressure can reach 500g, strong pressure can cut any reflective film.

9. English backlit LCD displaypanel, clear operation.

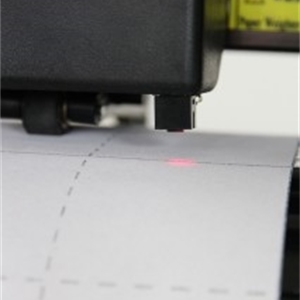

10.Infrared sensor can auto scan the contour, offering  better precision and easer operation



HX-800KIII

HX-1360KIII

HX-1780KIII

LCD

Backlight LCD

Maximum paper width

800mm

1360mm

1780mm

Real time range

720mm×limitless

1250mm×limitless

1650mm×limitless

Cutting pressure

20-800g20LV

Cutting speed

25mm/s-800mm/s

cutting thickness

0.05-0.5mm

connection type

Serial port+USB port+U-disk+SD card

Original point setting

random setting of original point manually

Power

AC90-220V/50-60HZ

Support software

Artcut/Cut Master/Flexi/Coreldraw

Bracket

with

paper moving system

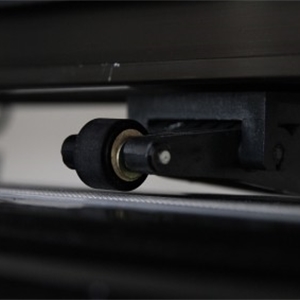

Roll axis/steel Thron roll

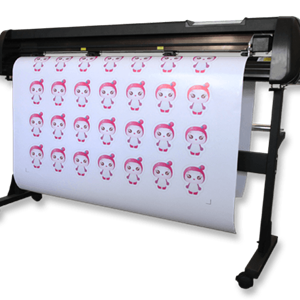

Our cutting plotter is widely used in advertising industry. Vinyl sticker paper, soft material and paper are typical examples that can be done with our cutting plotter
