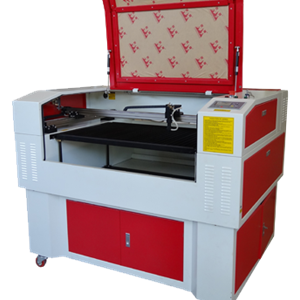

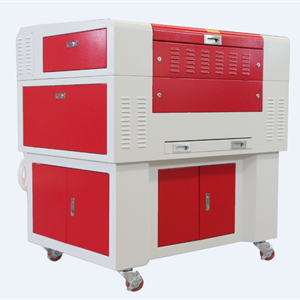

SE laser engraving machine

SE laser engraving machine

    Add:2020-8-22 23:05:49

    Abstract:1) Engraving area: 1, 200 x 900mm2) Laser power: 80W3) Laser type: CO2 laser tube4) Engraving speed: 0~1000mm/s5) Cutting speed: 0~600mm/s6) Resetting positioning accuracy: <0.01mm7) Cutting depth: Acrylic 0-25mm8) Minimum shaping character: 1.5 x 1.5m

1) Engraving area: 1, 200 x 900mm
2) Laser power: 80W
3) Laser type: CO2 laser tube
4) Engraving speed: 0~1000mm/s
5) Cutting speed: 0~600mm/s
6) Resetting positioning accuracy: <0.01mm
7) Cutting depth: Acrylic 0-25mm
8) Minimum shaping character: 1.5 x 1.5mm
9) Power supply: 220V± 10% 50Hz or 110V± 10% 60Hz
10) Gross power: 1, 600W
11) Software supported: ArtCut, CorelDraw, PhotoShop, AutoCAD
12) Graphic format supported: PLT, DXF, BMP, JPG, GIF, PGN, TIF
13) Engraver for curve surfaces: We can add an rotary attachment on the laser engrave/cutting machine, then the machine can engrave on cylinder
14) Water cooling: (Yes/No) Yes
15) Maximum height of materials to engrave (mm): 280mm (up and down by motor)
16) Laser tube (life hours): 1, 500 hours
17) Equipment dimensions: 1, 700 x 1, 350 x 1, 100mm
18) Assistant equipment: Water pump, exhaust fan, aluminum alloy worktable
19) Optional spare parts: Metal laser tube, rotary system, cooling water system

20) Recommended spare parts/consumables: Laser tube and lens

Type HX-4060SE HX-6090SE HX-1290SE HX-1390SE HX-1490SE HX-1610SE HX-1613SE
Laser power 40w 60w 80w/100w/120w/150w
Engraving Area (mm) 400 x 600 600 x 900 1200 x 900 1300x900 1400x900 1600x1000 1600x1300
Gross power 1200w 1200w 1600w/1800w/2000w
Laser type CO2 Laser tube
Cutting depth acrylic 0-20mm
Engraving speed 0-1000mm/s
Cutting speed 0-600mm/s
Resetting positioning accuracy <0.01mm
Maximum forming character 1.5 x 1.5mm
Power supply 220V±10% 50HZ or 110V±10% 60HZ
Software supported ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported PLT, DXF, BMP, JPG, GIF, PGN, TIF
Engraver for Curve surfaces we can provide rotary system so as to engrave on curse surfaces
Water Cooling Yes
Maximum Height of
Materials to Engrave
280mm(by motor)
Assistant Equipment Water pump Exhaust Fan Aluminum alloy worktable Air compressor
Optional Spare Parts RF Laser Tube Rotary System Cooling water system Red dot pointer

Main application:

Available materials: acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials
Comprehensive application: advertisement, arts and crafts, toys, textile garment, leather, car, mechanism, electron, building upholster, timekeeper and jewelery industry and so on.
